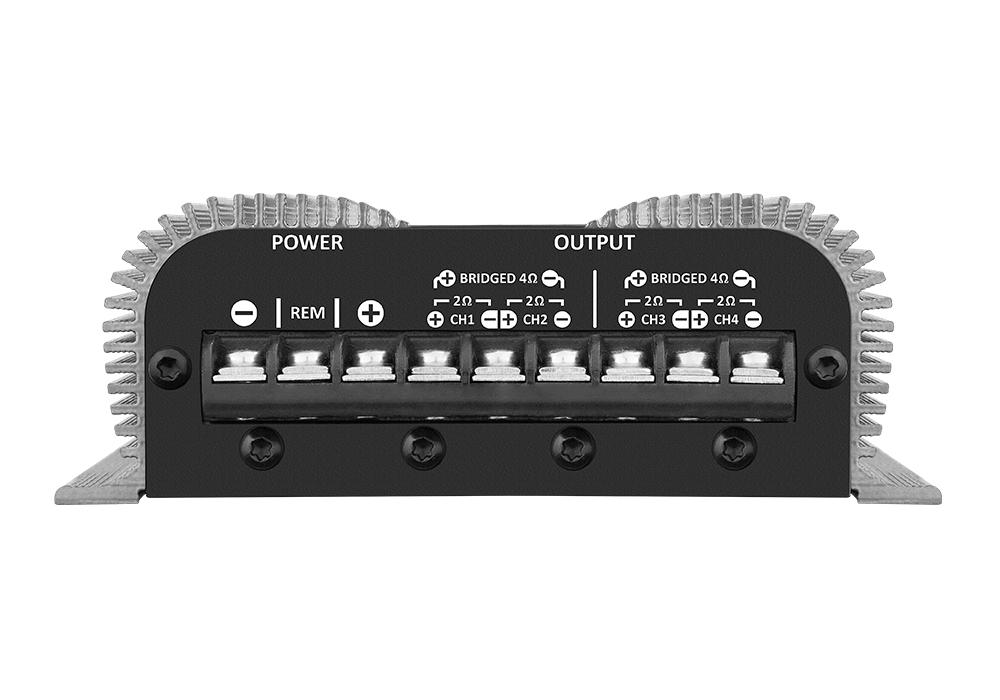

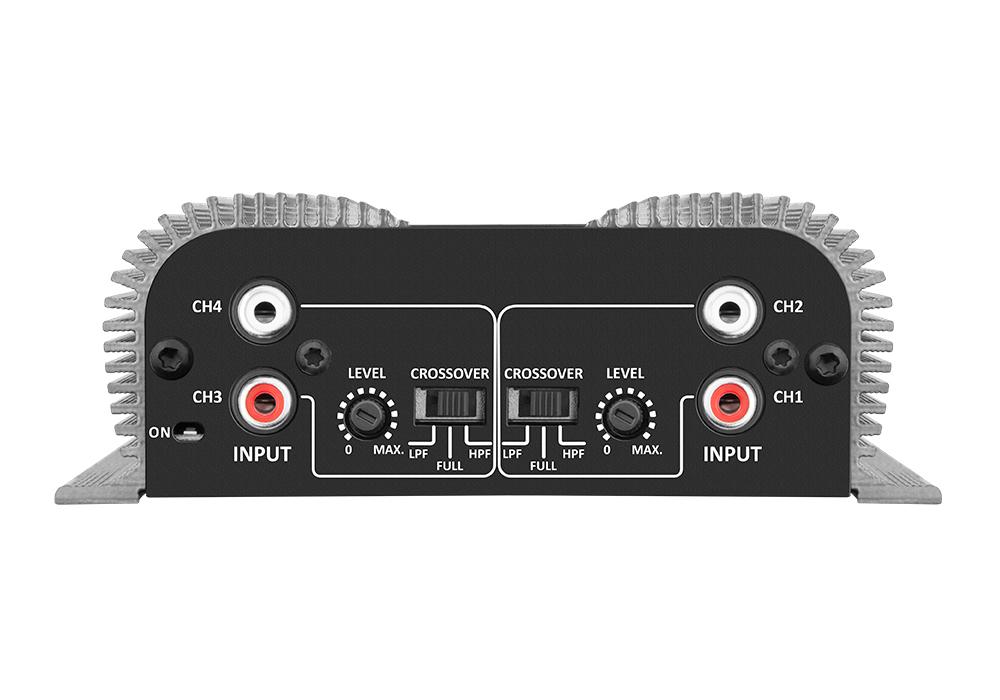

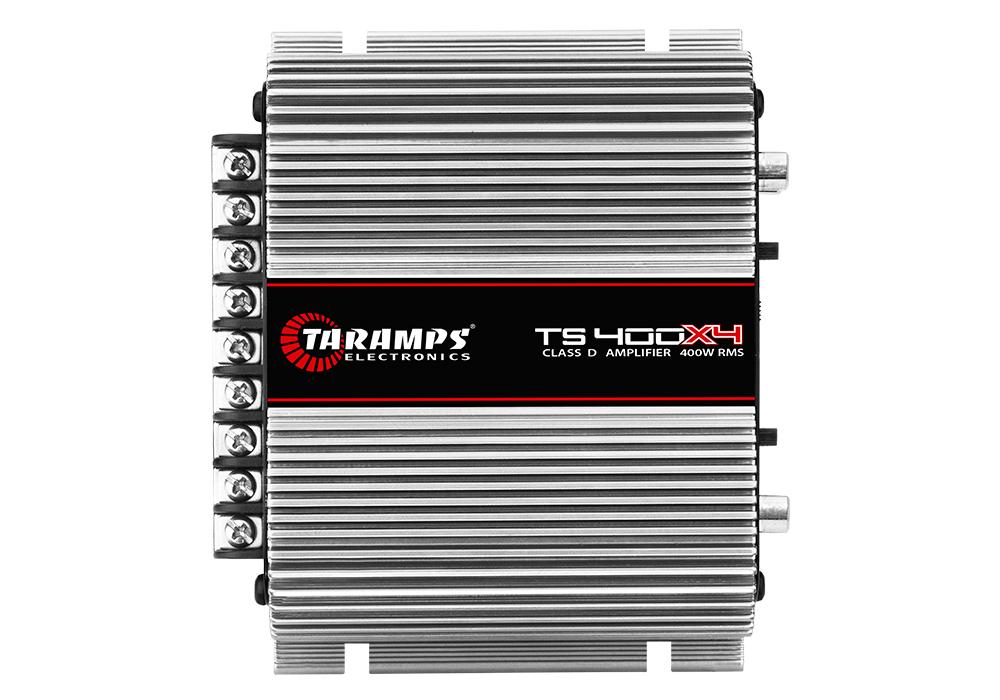

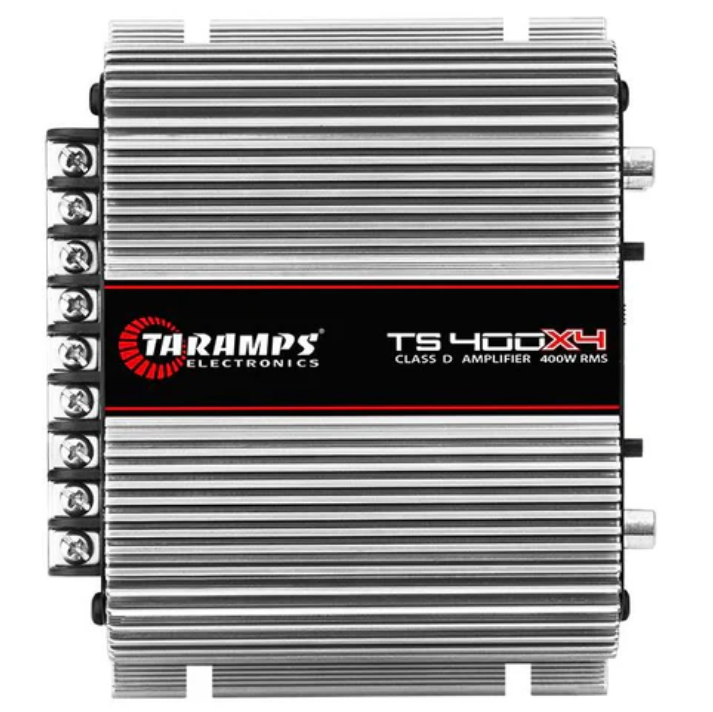

TARAMPS TS400X4 400W RMS AUTOMOTIVE SOUND AMPLIFIER 4 CHANNELS 2 OHMS

Shipments via FedEx:
Shipping processing time is 0 to 1 business day after receipt of payment. We partner with Fedex - delivery in 2-3 working days in the USA and 5-7 working days worldwide. A tracking number will be provided when you make your purchase.

Amplifier Module Taramps TS400 4 Channels

The TS 400×4 amplifier module is carefully developed with state-of-the-art technology, offering high efficiency and performance for automotive audio systems. Classified as Multi-channel, it has a maximum power of 400 watts RMS running at a 2-ohm impedance, with four 100 watts RMS channels. It is FUULL-RANGE, operating on all frequencies in the right measure.

TECHNICAL INFORMATION
OPERATION CLASS Class D
NUMBER OF CHANNELS 04
MAXIMUM POWER
@ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)
@ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS)
Bridged @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)
INPUT SENSITIVITY 200mV (Vol = max.)
SIGNAL TO NOISE RATIO > 90dB
FREQUENCY RESPONSE (Full Range): 18 Hz to 30 kHz (-1dB)
CROSSOVER HIGH PASS (HPF) 90 Hz (-12dB/8th)
CROSSOVER LOW PASS (LPF) 90 Hz (-12dB/8th)
INPUT IMPEDANCE 22K ohms
OUTPUT IMPEDANCE 2 ohms
PROTECTION SYSTEM Thermal and Output Short
MIN. SUPPLY VOLTAGE 8 VDC
MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
CONSUMPTION AT REST 0.8A
MAXIMUM MUSIC CONSUMPTION @13,8VDC: 16.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @13,8VDC: 33A
DIMENSIONS (H X W X D) 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm)

WARRANTY

12 months
