AMPLIFIER SOUNDIGITAL 1200.4 - 2 ohms EVO 5
AMPLIFIER SOUNDIGITAL 1200.4 - 2 ohms EVO 5
Regular price
$289.00 USD
Regular price
$325.00 USD
Sale price
$289.00 USD
Unit price
/
per
Shipments via FedEx:
Shipping processing time is 0 to 1 business day after receipt of payment. We partner with Fedex - delivery in 2-3 working days in the USA and 5-7 working days worldwide. A tracking number will be provided when you make your purchase.

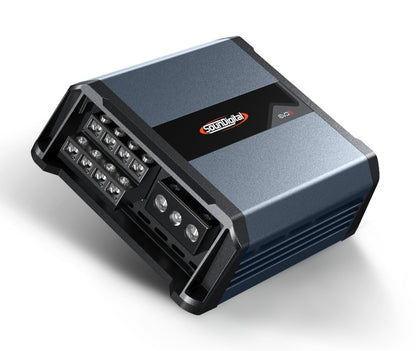

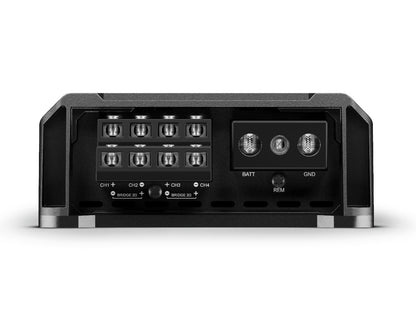

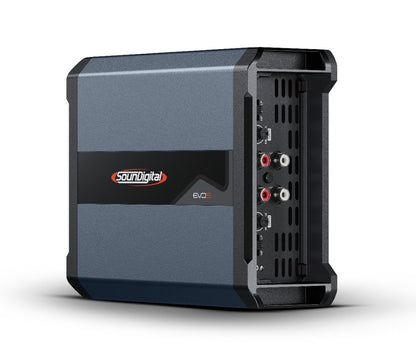

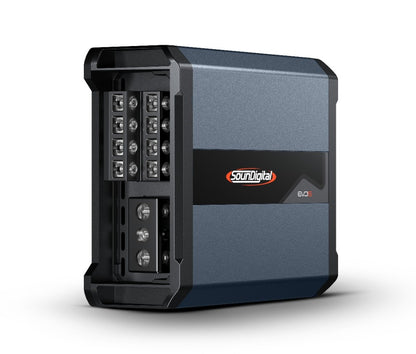

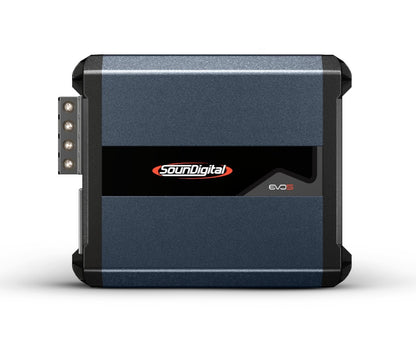

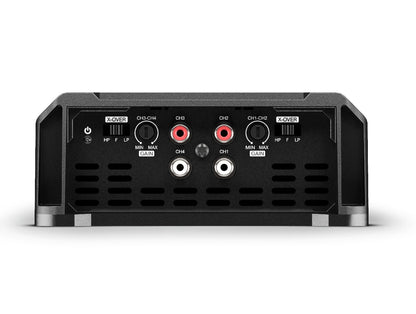

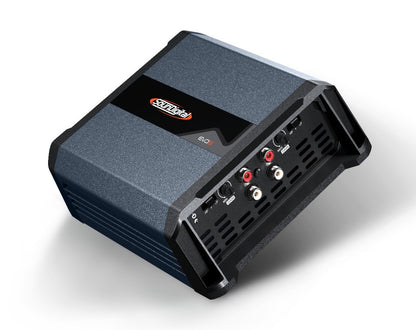

The 1200.4 EVO 5 is an amplifier with a compact and modern design that delivers 1200W RMS of power in 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
1200.4 EVO 5 - 2 OHMS
Power @ 1Ω: 4 X 300 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 4Ω: 4 X 130 WRMS
Bridge Power @ 2Ω: 2 X 600 WRMS
Bridge Power @ 4Ω: 2 X 396 WRMS
Frequency Response (-3dB): 5Hz ~ 22kHz
Low pass filter (12dB/octave): 80Hz
High pass filter (12dB/octave): 80Hz
Supply Voltage: 10V ~ 16V
Signal-to-noise ratio: 87dB
Input sensitivity: 0.2V ~ 2V
Music consumption: 59A
Maximum consumption: 118A
Total efficiency: 81%
Damping factor: 200
Power cable: 16 mm² (5 AWG)
Audio output cable: 2 x 2 mm² (14 AWG)
Recommended fuse (musical): 60A
Recommended battery (minimum for music use): 60Ah
Width: 13.6cm
Length: 17cm
Height: 5.48cm
Weight: 1.07 kg
