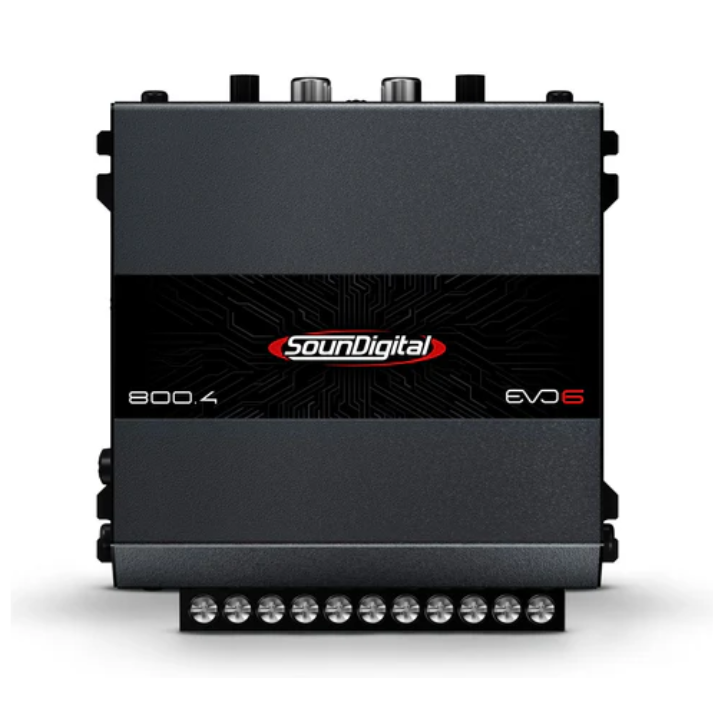

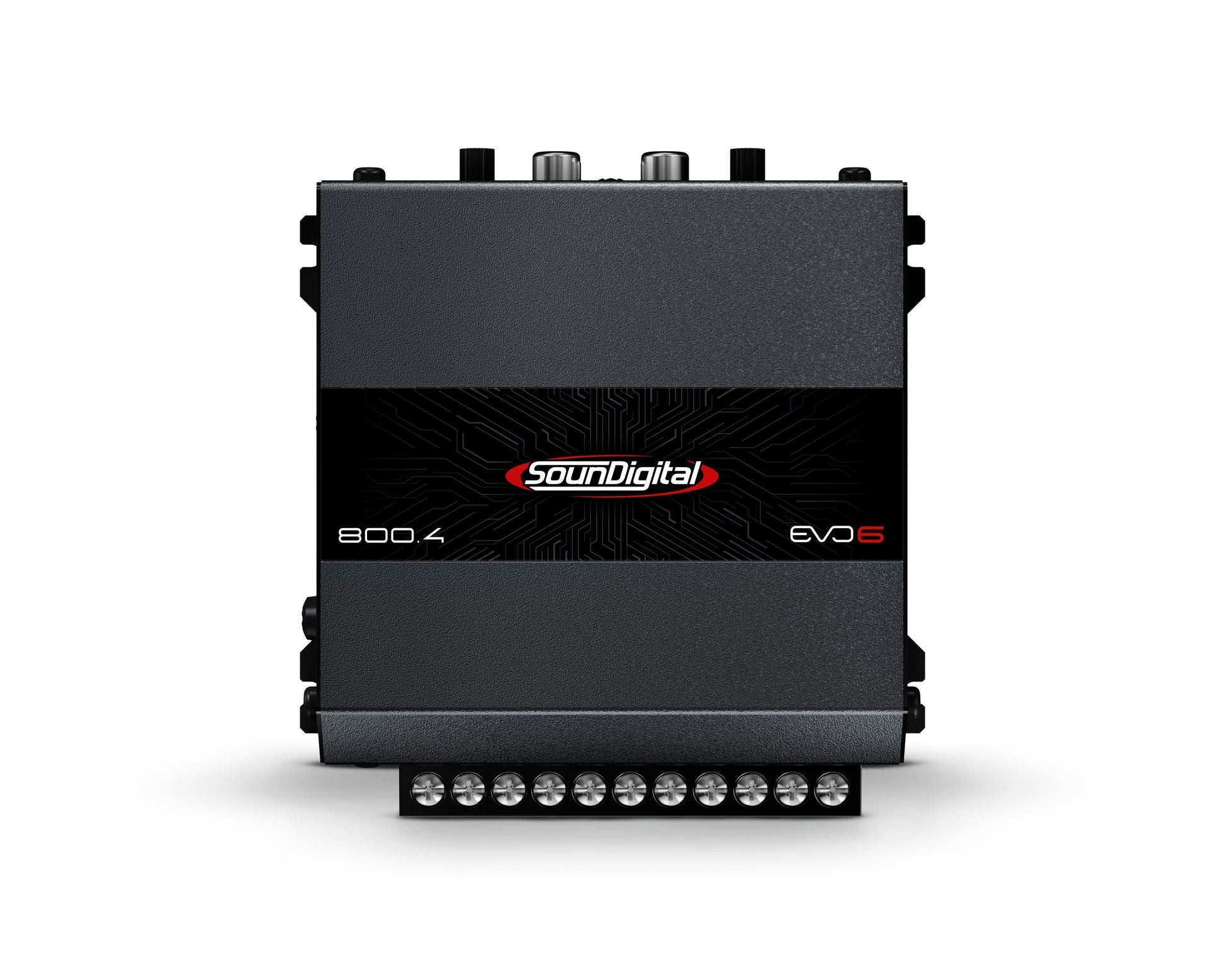

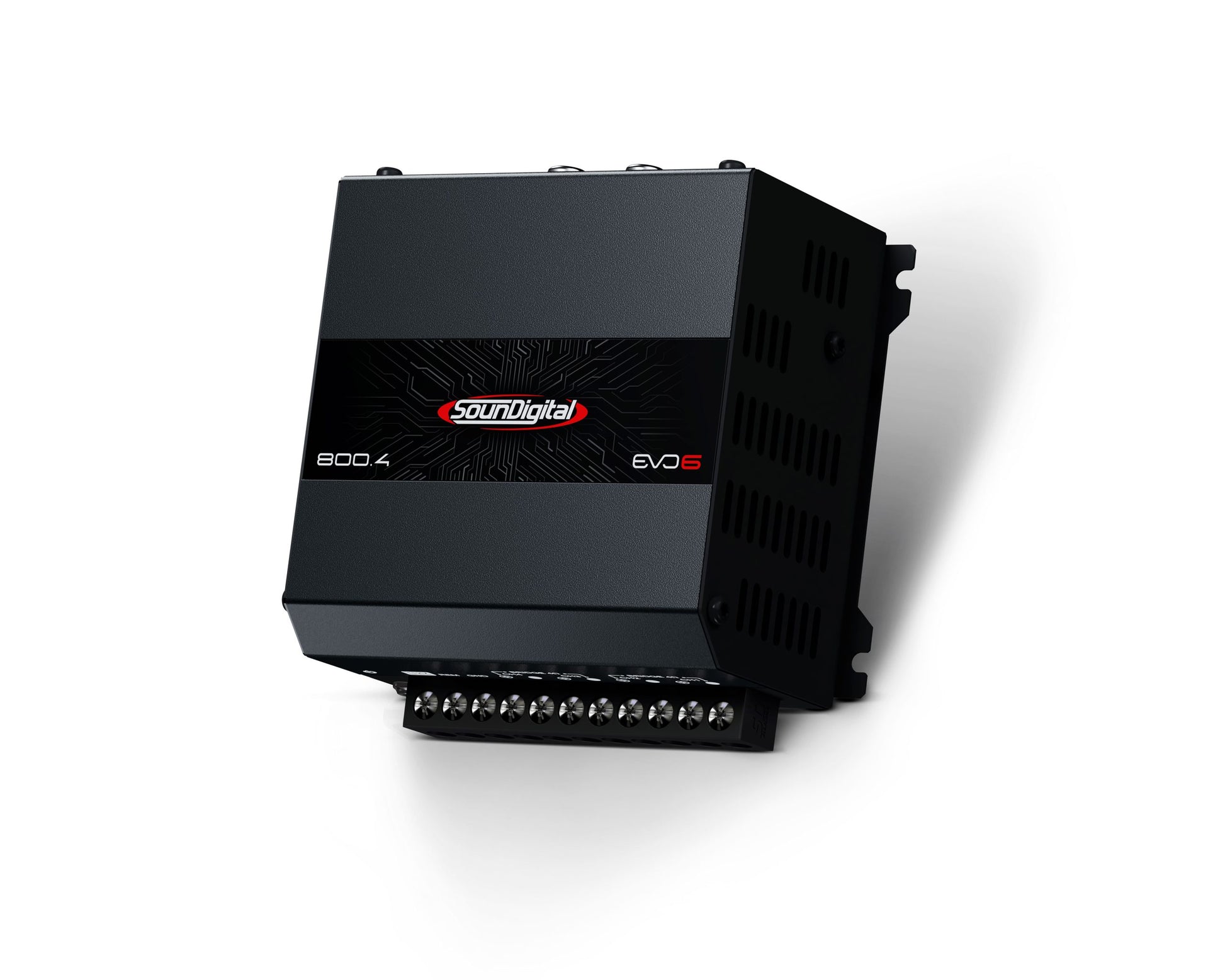

AMPLIFIER SOUNDIGITAL 800.4 EVO 4.0 STEREO DIGITAL - 4 OHMS
AMPLIFIER SOUNDIGITAL 800.4 EVO 4.0 STEREO DIGITAL - 4 OHMS
Regular price
$249.00 USD
Regular price
$225.99 USD
Sale price
$249.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipments via FedEx:
Shipping processing time is 0 to 1 business day after receipt of payment. We partner with Fedex - delivery in 2-3 working days in the USA and 5-7 working days worldwide. A tracking number will be provided when you make your purchase.
DETAILS
The 800.4 EVO 4.0 amplifier comes with exclusive patented * DTR technology.
The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.
Do you know what that means? An even more reliable and resistant product for you!
* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product.
TECHNICAL SPECIFICATIONS
800.4 EVO 4.0 4Ω
Power @ 12.6V @ 2Ω: 4 x 200 W RMS
Power @ 12.6V @ 4Ω: 4 x 132 W RMS
Power @ 14.4V @ 2Ω: 4 x 223 W RMS
Power @ 14.4V @ 4Ω : 4 x 147 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 400 W RMS
THD + N - (10% of rated power): 0.1%
THD + N - (100% of rated power): 1 %
Frequency Response: 10Hz - 20kHz
Crossover: LP / HP: 80Hz 12dB / 8th
Damping Factor: 200
Maximum Consumption: 80A
Dimensions (LxWxH): 14.8 X 11.3 X 5.0 CM
Weight: 0.66 kg
The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.
Do you know what that means? An even more reliable and resistant product for you!
* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product.
TECHNICAL SPECIFICATIONS
800.4 EVO 4.0 4Ω
Power @ 12.6V @ 2Ω: 4 x 200 W RMS
Power @ 12.6V @ 4Ω: 4 x 132 W RMS
Power @ 14.4V @ 2Ω: 4 x 223 W RMS
Power @ 14.4V @ 4Ω : 4 x 147 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 400 W RMS
THD + N - (10% of rated power): 0.1%
THD + N - (100% of rated power): 1 %
Frequency Response: 10Hz - 20kHz
Crossover: LP / HP: 80Hz 12dB / 8th
Damping Factor: 200
Maximum Consumption: 80A
Dimensions (LxWxH): 14.8 X 11.3 X 5.0 CM
Weight: 0.66 kg
Package Contents:
• 01 Amplifier Module 800.4 EVO 4.0
• Manual and Warranty Certificate
Important:
• 1 Year Warranty.
• Unit Value.
