AMPLIFIER SOUNDIGITAL 800.1 - 2 ohms EVO 5

Shipments via FedEx:
Shipping processing time is 0 to 1 business day after receipt of payment. We partner with Fedex - delivery in 2-3 working days in the USA and 5-7 working days worldwide. A tracking number will be provided when you make your purchase.

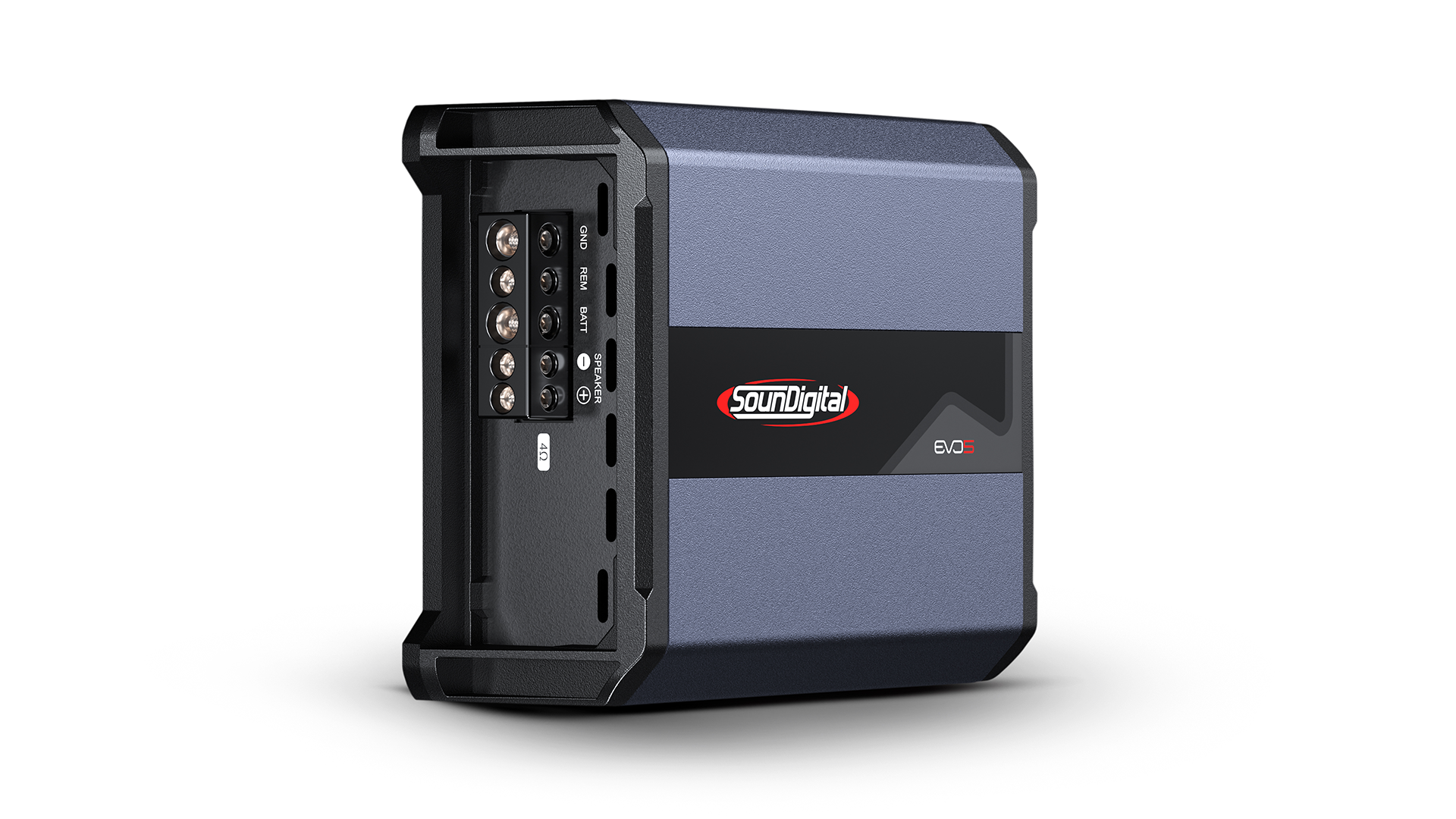

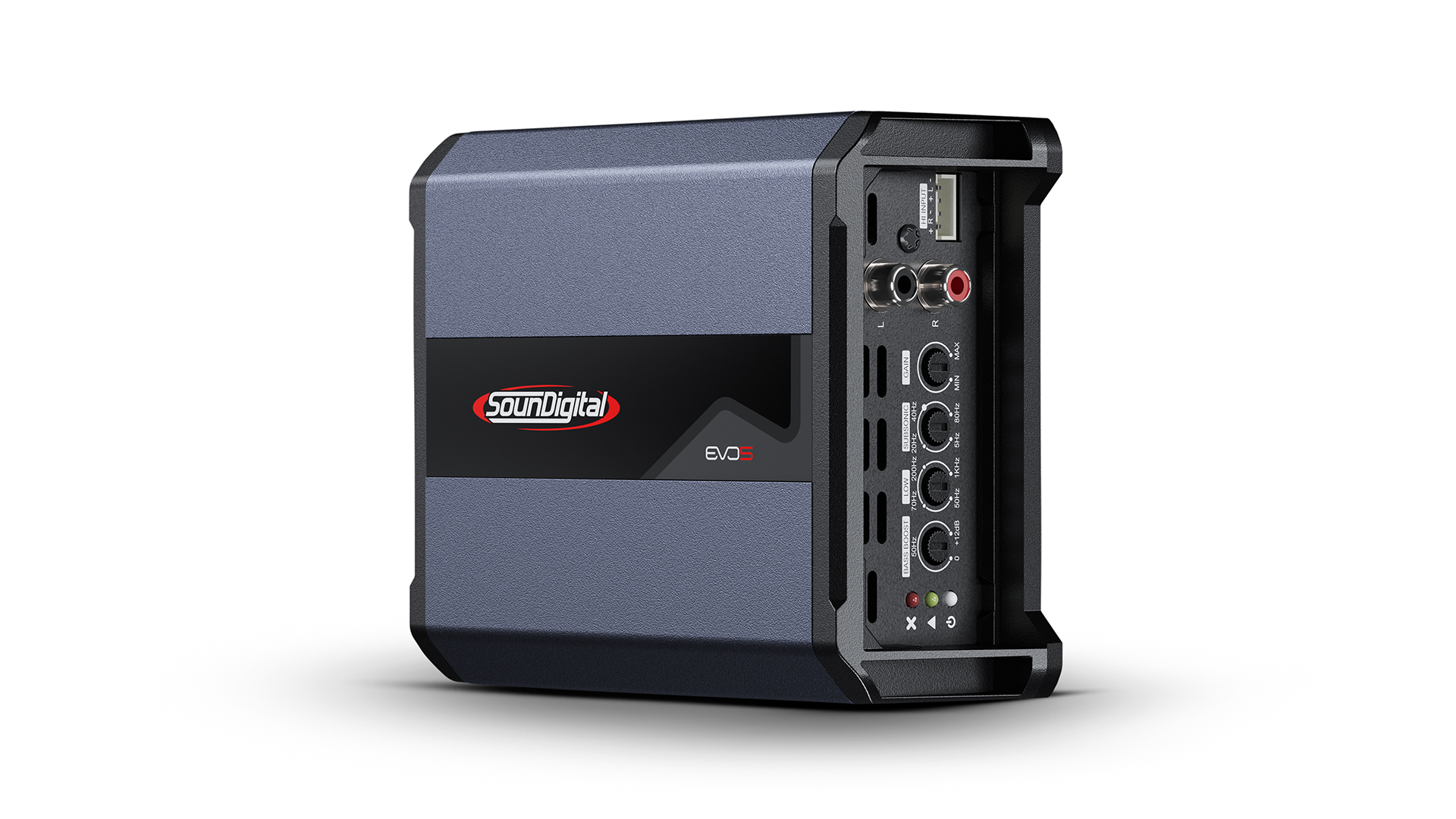

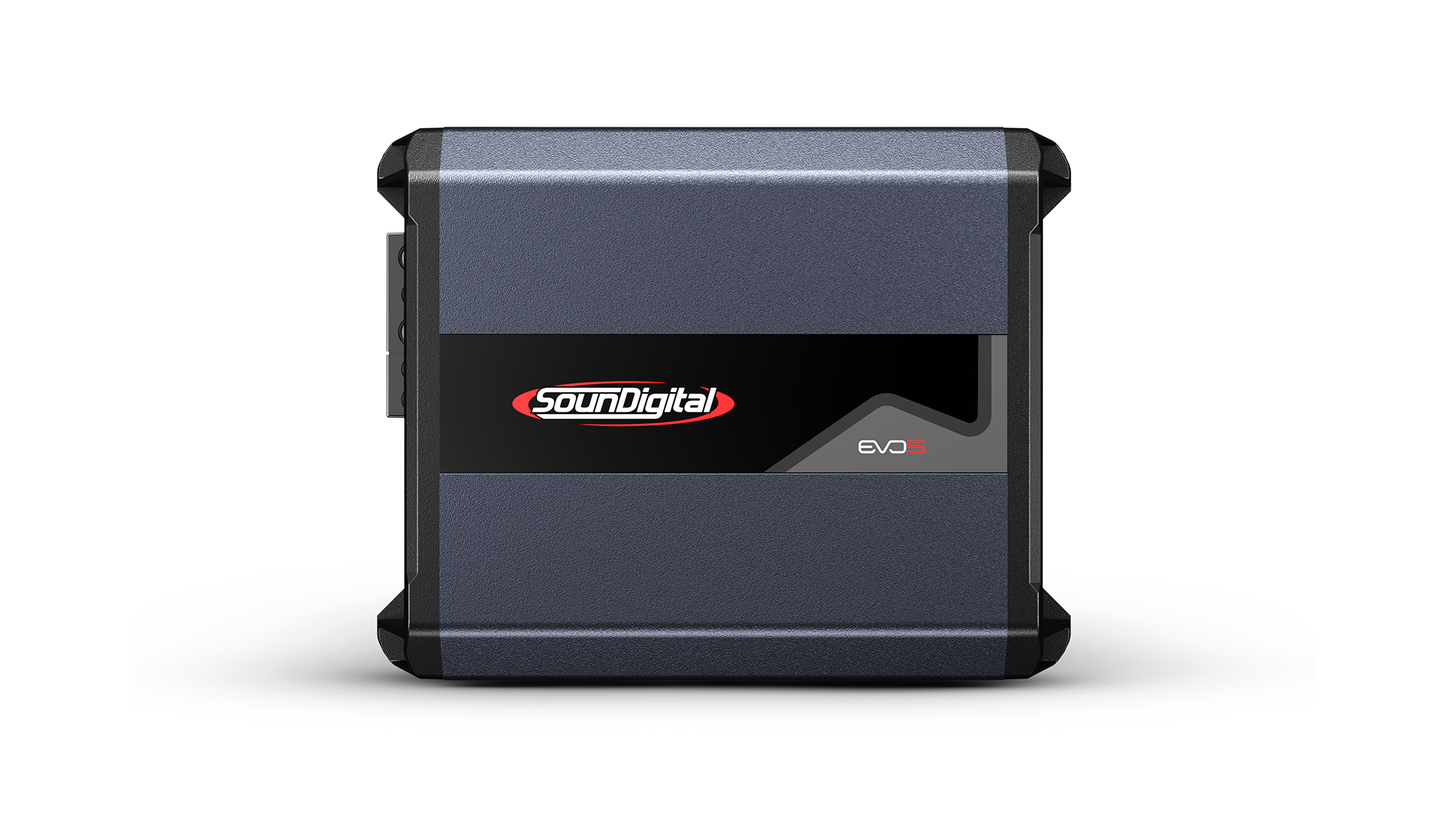

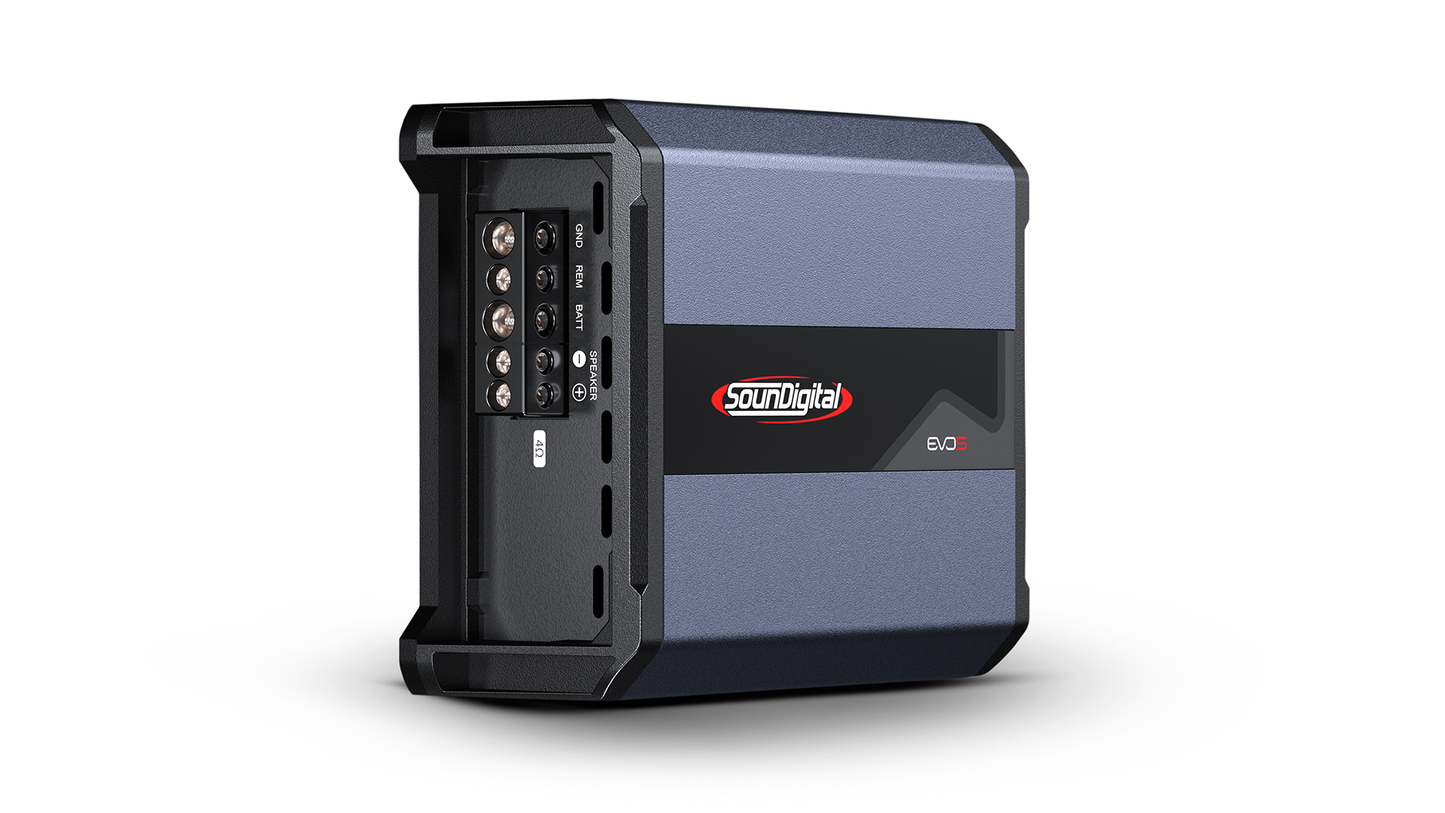

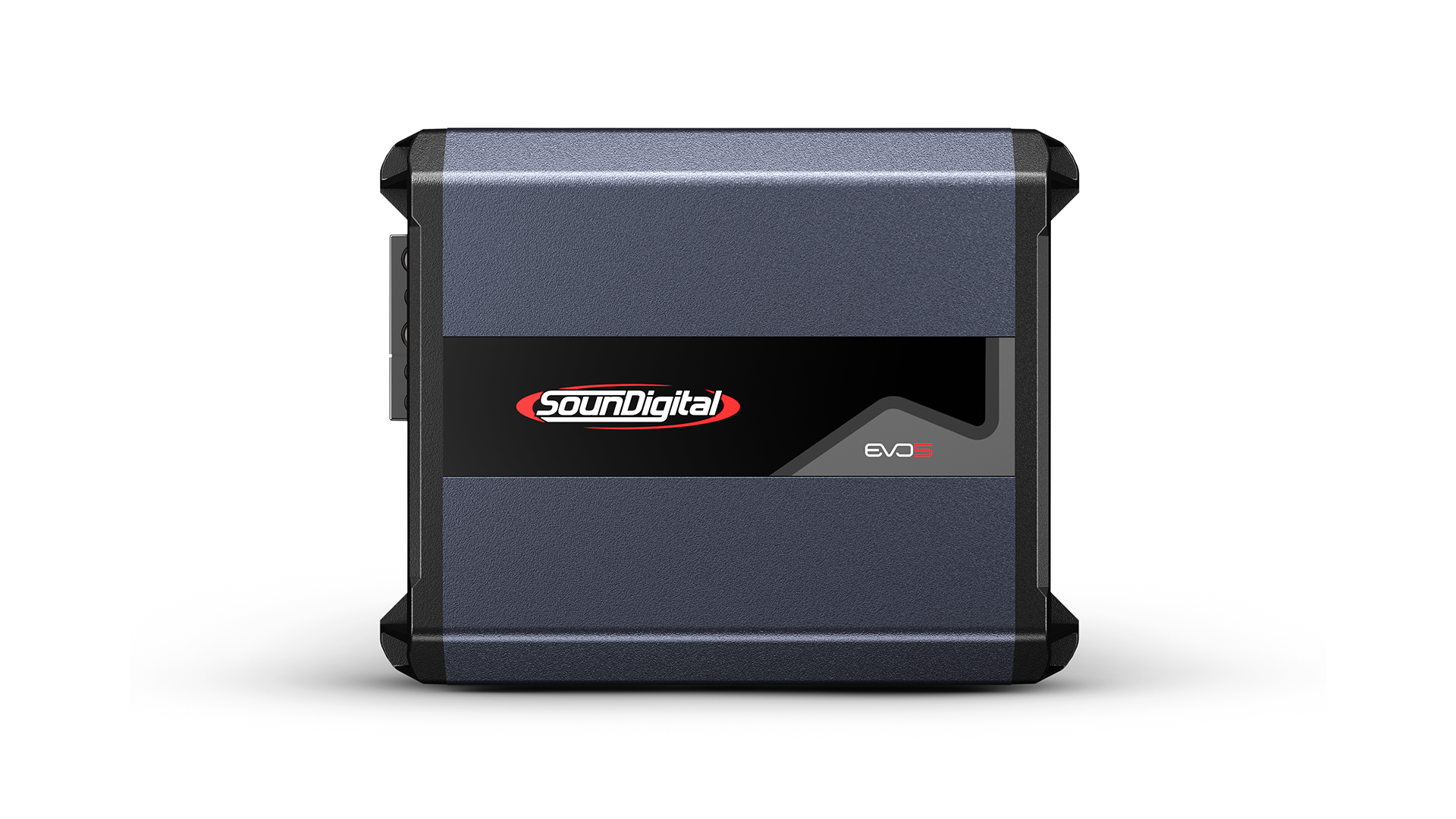

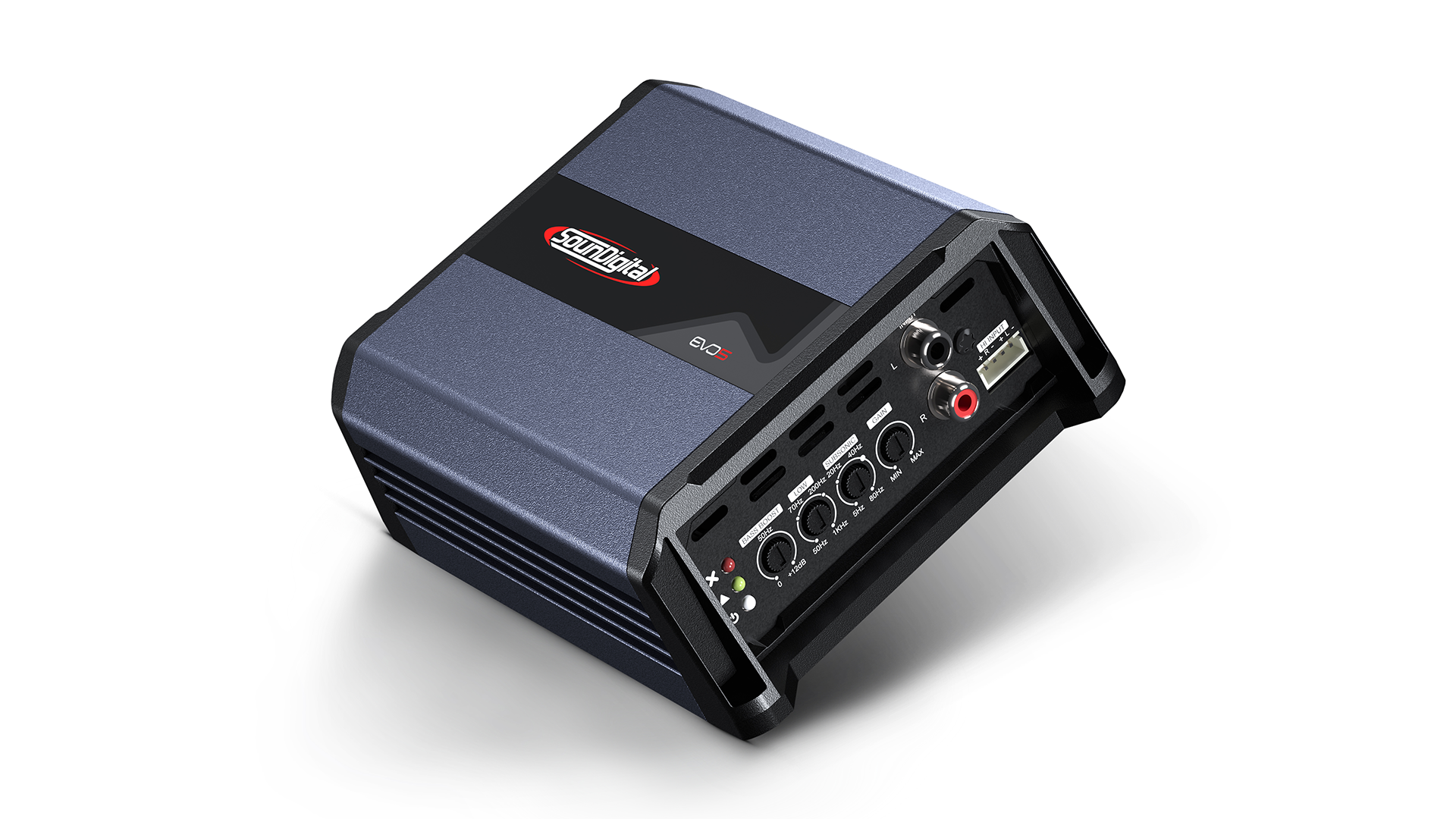

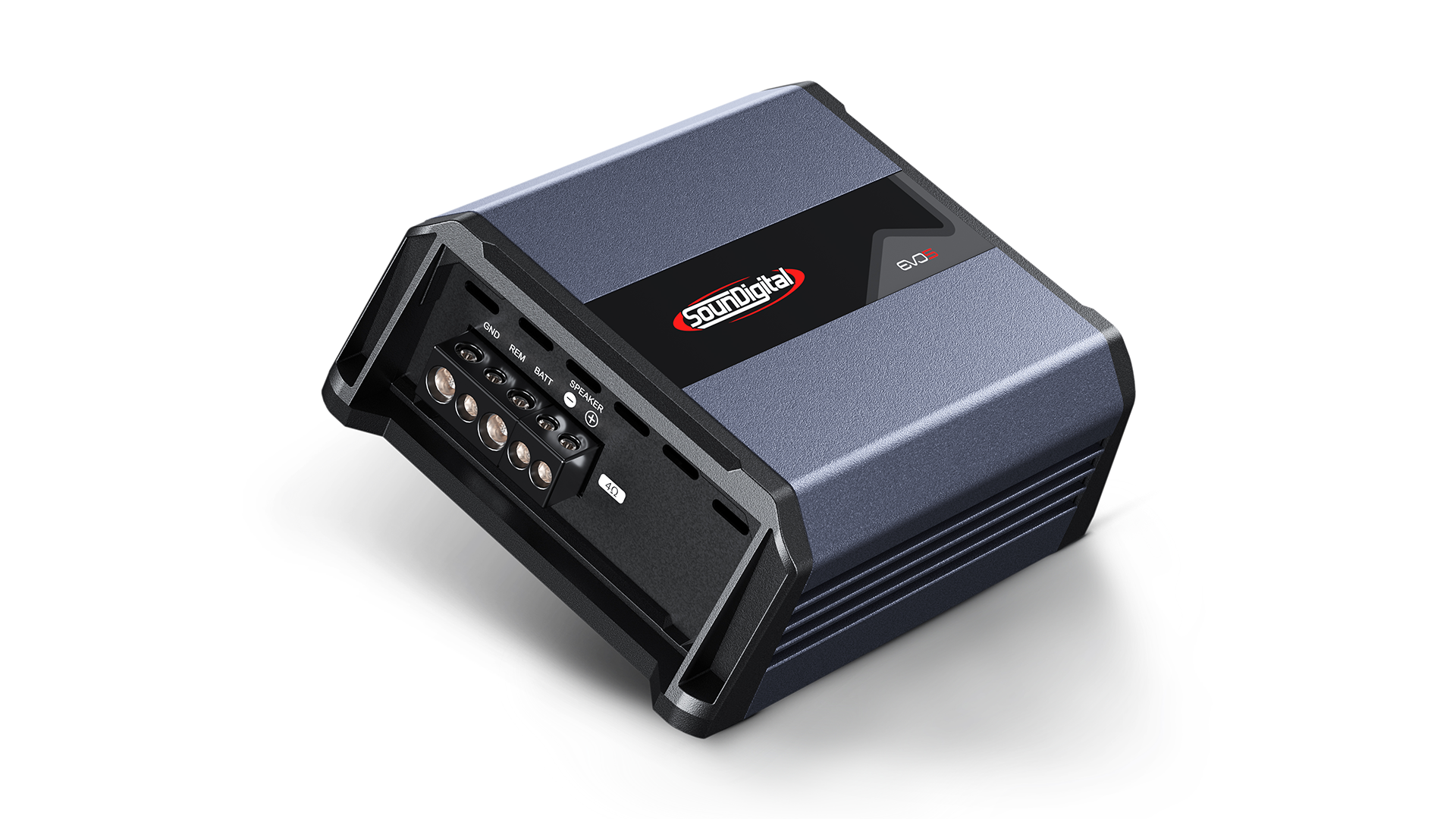

The 800.1 EVO 5 is an amplifier with a compact and modern design that delivers 800W RMS of power in 1 channel.The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

800.1 EVO 5 - 2 OHMS

RMS power @ 2Ω: 800W
RMS power @ 4Ω: 528W
RMS power @ 8Ω: 348W

Response Frequency: 5Hz ~ 1000Hz

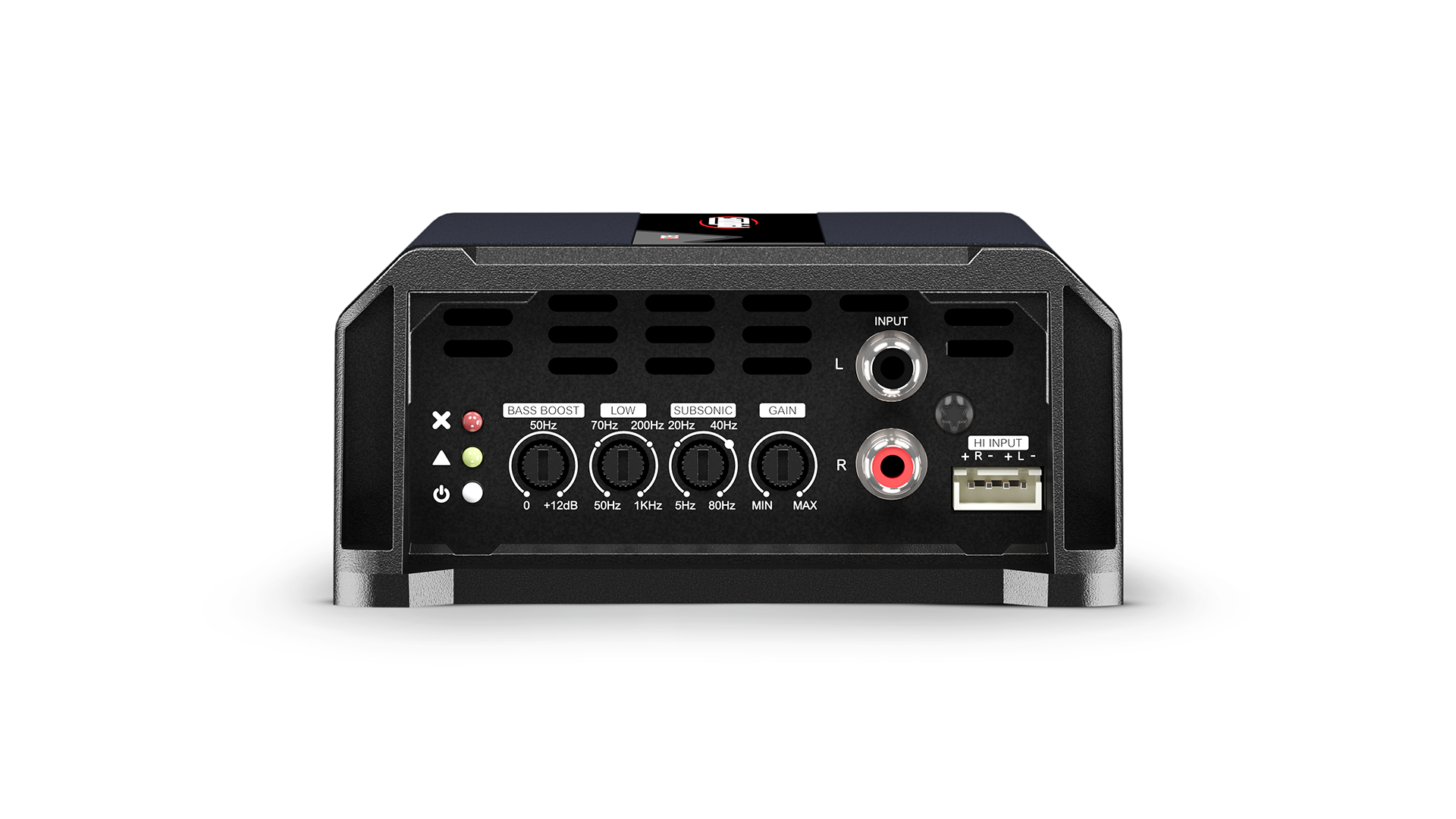

Subsonic Filter (HP 12dB/8): 5Hz ~ 80Hz

Low Pass Filter (LP 12dB/8): 50Hz ~ 1000Hz

Supply Voltage: 8V ~ 16V

SNR: 93dB

Input Sensitivity: 0.2V ~ 4V

Consumption With Musical Signal: 36A

Consumption With Resistive Load (1kHz @ 12.6V): 72A

Total Efficiency: 88%

Damping Factor (@100Hz Nominal Impedance): 200

Minimum Audio Output Impedance: 2Ω

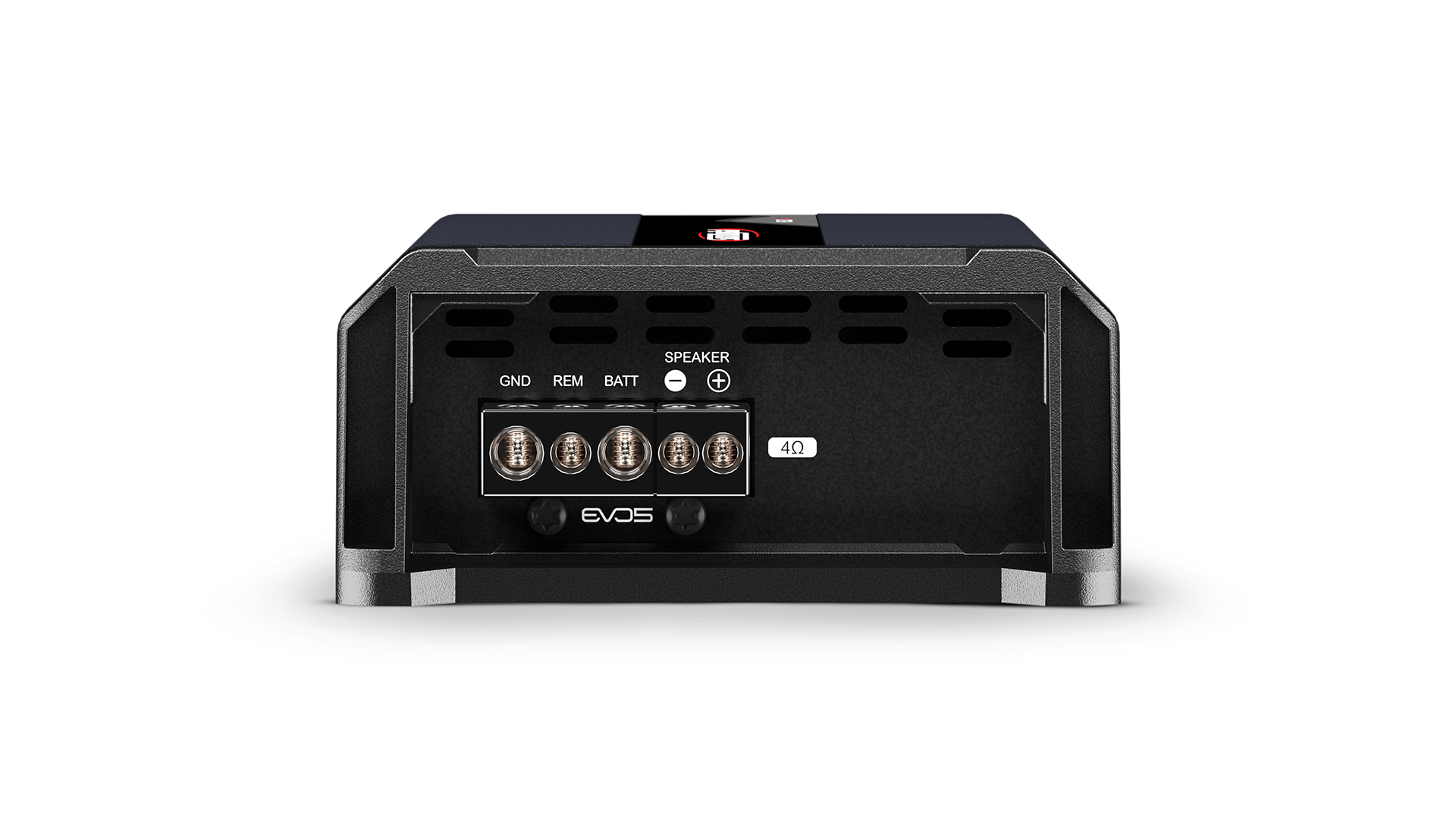

Power Cord: 10mm² (7AWG)

Audio Output Cable: 2 x 2mm² (12 AWG)

Recommended Fuse (Musical): 40A

Recommended Battery (Minimum for Music Use): 60Ah

Width: 11.3cm

Length: 14.8cm

Height: 5.1cm

Weight: 0.7 Kg
