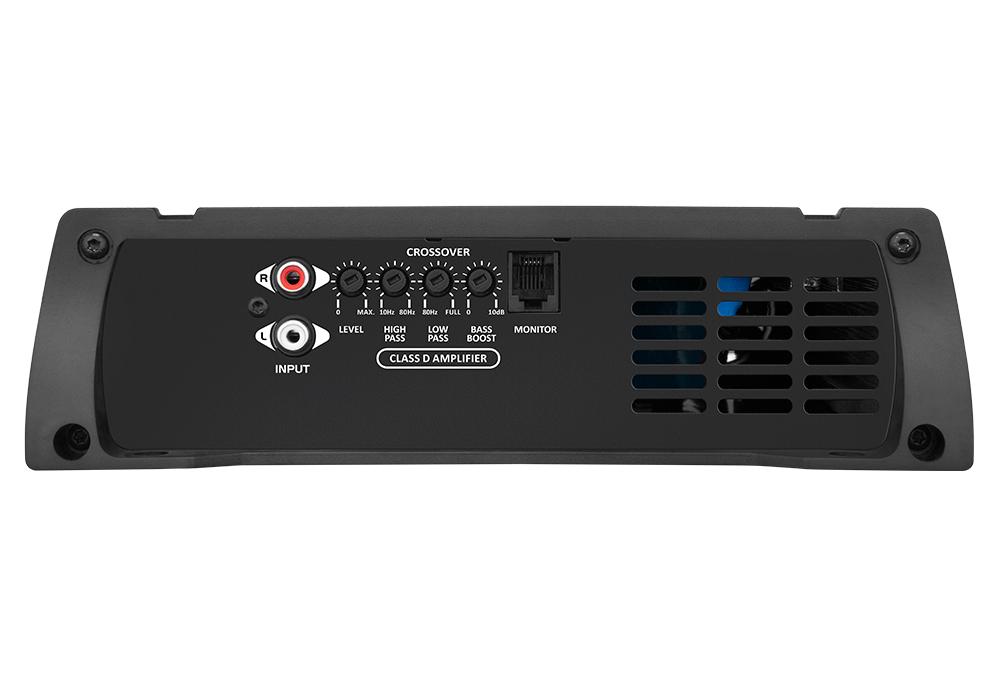

Taramps HD3000 1 Channel 3575 Watts RMS - 1 OHM

Shipments via FedEx:
Shipping processing time is 0 to 1 business day after receipt of payment. We partner with Fedex - delivery in 2-3 working days in the USA and 5-7 working days worldwide. A tracking number will be provided when you make your purchase.

Description

The HD 3000 amplifier module is carefully developed with state-of-the-art technology, offering high efficiency and performance for automotive audio systems. Classified as Mono, it has a maximum power of 3.000 Watts RMS, running at a 1,2,4 Ohms impedance, with a single 3.000 Watts RMS channel. It is FULL-RANGE, operating on all frequencies in the right measure.

TECHNICAL INFORMATION 1 OHM

OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @12.6VDC - 1 Ohm: 3000 Watts RMS
@12.6VDC - 2 Ohms: 2025 Watts RMS
@12.6VDC - 4 Ohms: 1140 Watts RMS
INPUT SENSITIVITY 230mV
SIGNAL TO NOISE RATIO 89dB
FREQUENCY RESPONSE 10Hz Hz ~ 20 kHz (-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~ 80 Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable
BASS BOOST 0 ~ 10.5dB (5 Hz)
THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
EFFICIENCY 79%
INPUT IMPEDANCE 18K ohms
OUTPUT IMPEDANCE 1 Ohm
PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection
MIN. SUPPLY VOLTAGE 9 VDC
MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
CONSUMPTION AT REST 1.8A
MAXIMUM MUSIC CONSUMPTION @12.6VDC: 150.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @12.6VDC (1kHz): 301A
